PD HD Float
Important Note:
This product requires you to send your Primary & Secondary to KWI for installation, as it needs to be performed in the shop.
Overview
The KWI PD HD Float is a precision-engineered clutch upgrade for the 2025+ Can-Am Defender HD11 and base-model X3 135hp (Turbo R) machines. These vehicles are equipped with the BRP PDrive primary system, which suffers from a combination of factory alignment issues, clutch drag, and premature roller wear that leads to hard shifting, belt drag, and frequent belt failures.
This Float system solves all of that by machining the secondary clutch to float—allowing it to self-align with the primary for better engagement, improved belt tracking, and reduced heat. It also includes resurfaced sheaves, our PD Update to prevent primary sticking, and a fresh set of OEM BRP primary rollers.
Why It Matters
- Corrects factory misalignment that causes hard shifting and secondary spin at idle.
- PD Update addresses heat-swelling and sticking primary issues at idle.
- New OEM BRP Primary Rollers included to combat premature wear (must be checked after every ride).
- Precision trued sheaves for better belt contact and engagement.
- Full clutch inspection before any work is performed—KWI will email a repair estimate if anything is worn or damaged.
Package Options

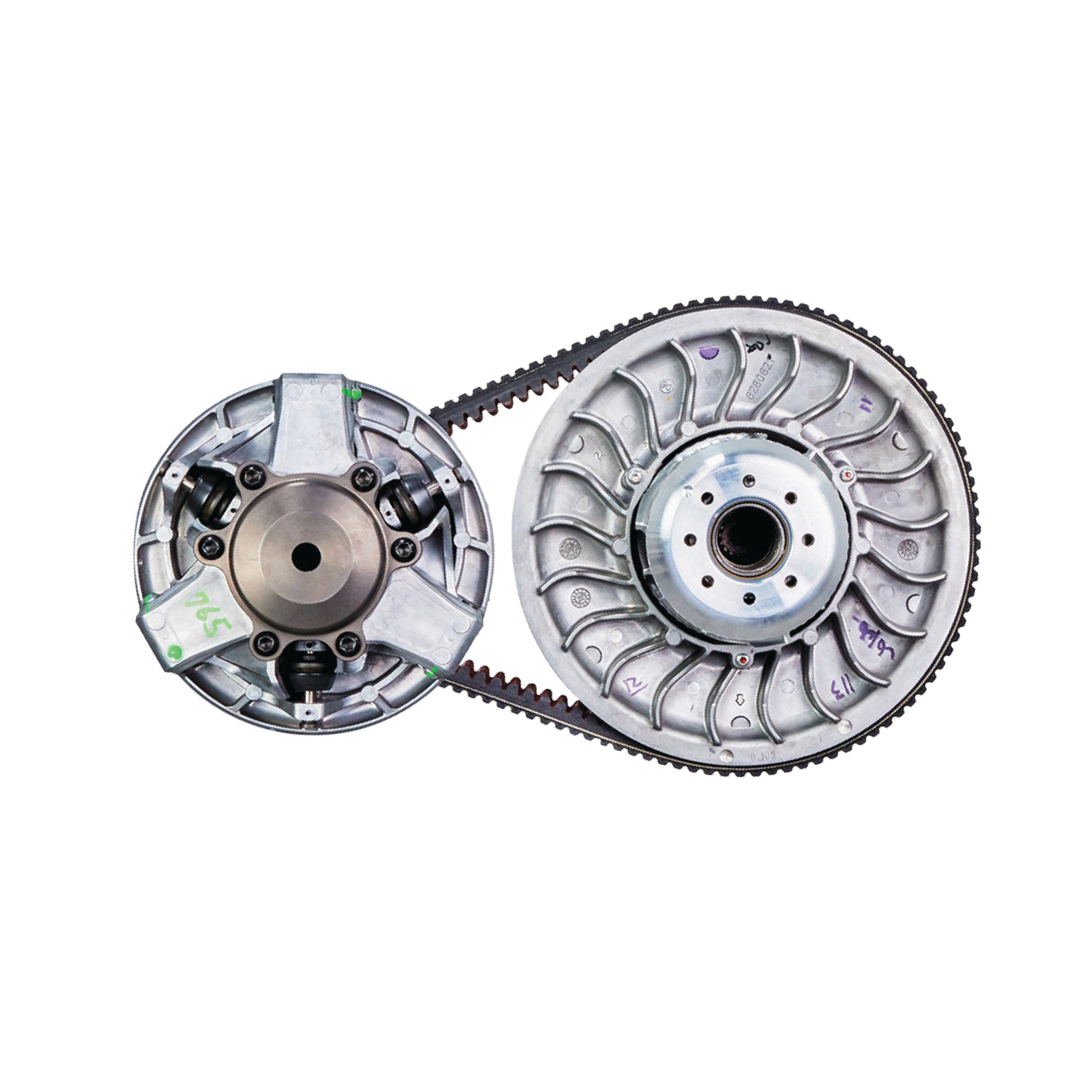

PD HD Float
- Full clutch inspection and evaluation
- Trued and refinished primary and secondary sheaves
- Secondary clutch machining for float
- BRP OEM Primary Rollers included (must still be inspected and replaced as needed over time)
- KWI Secondary Roller Update (Lifetime warranty against wear)

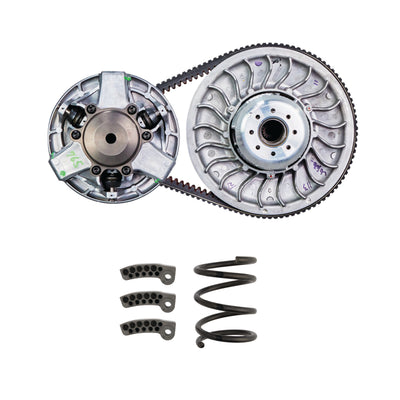

PD HD + Float
- Everything in PD HD Float
- Defcom 7 Base Clutch Kit – Optimized for stock or lightly tuned builds (Defender HD7, HD9, HD10, HD11, and X3 135hp). Adjustable weights, smoother engagement, and better backshifting.

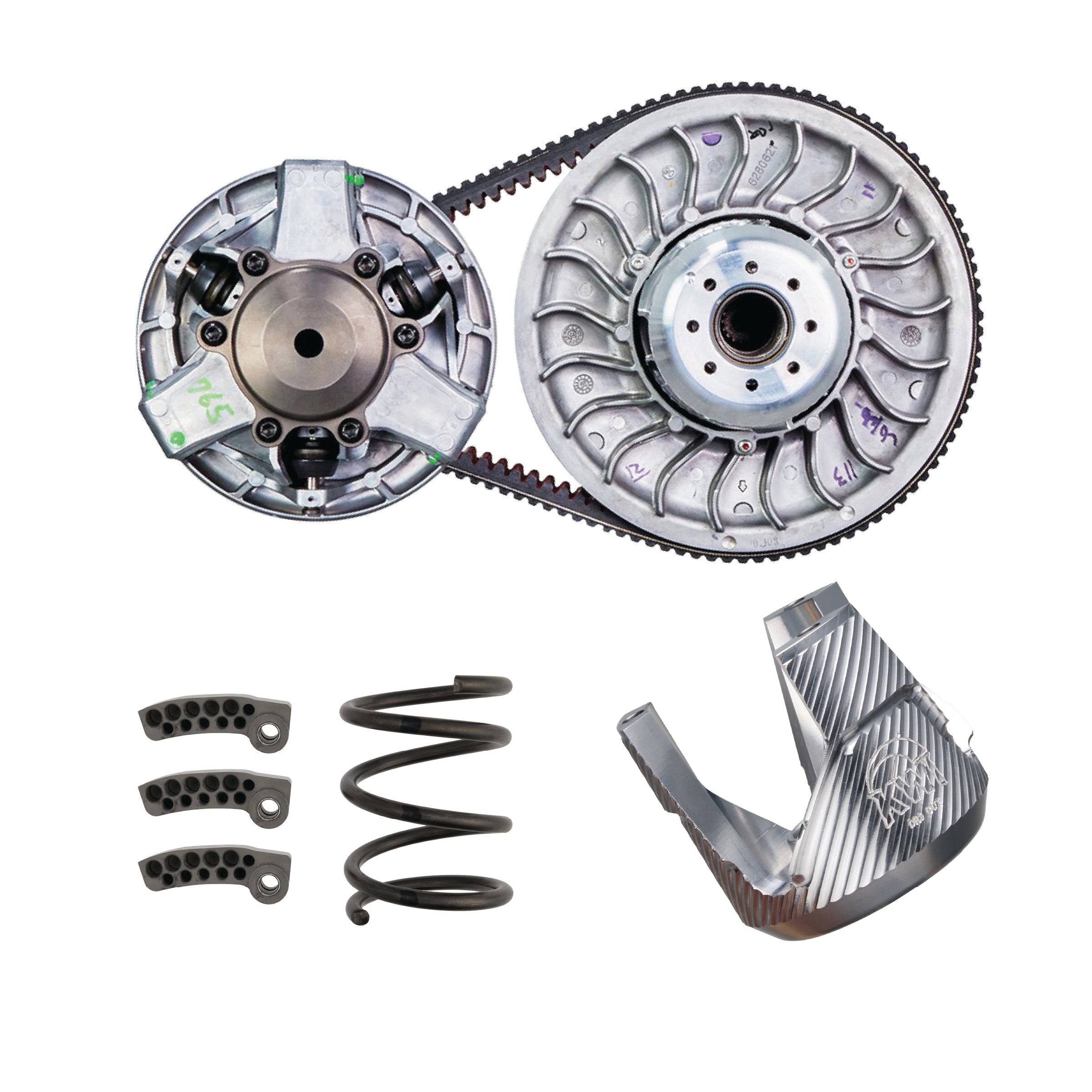

PD HD Pro Float
- Everything in PD HD + Float
- Defcom 7 Pro Kit – Includes DR3 Groovix Helix and Black/Green secondary spring for better belt grip and cooling under load.

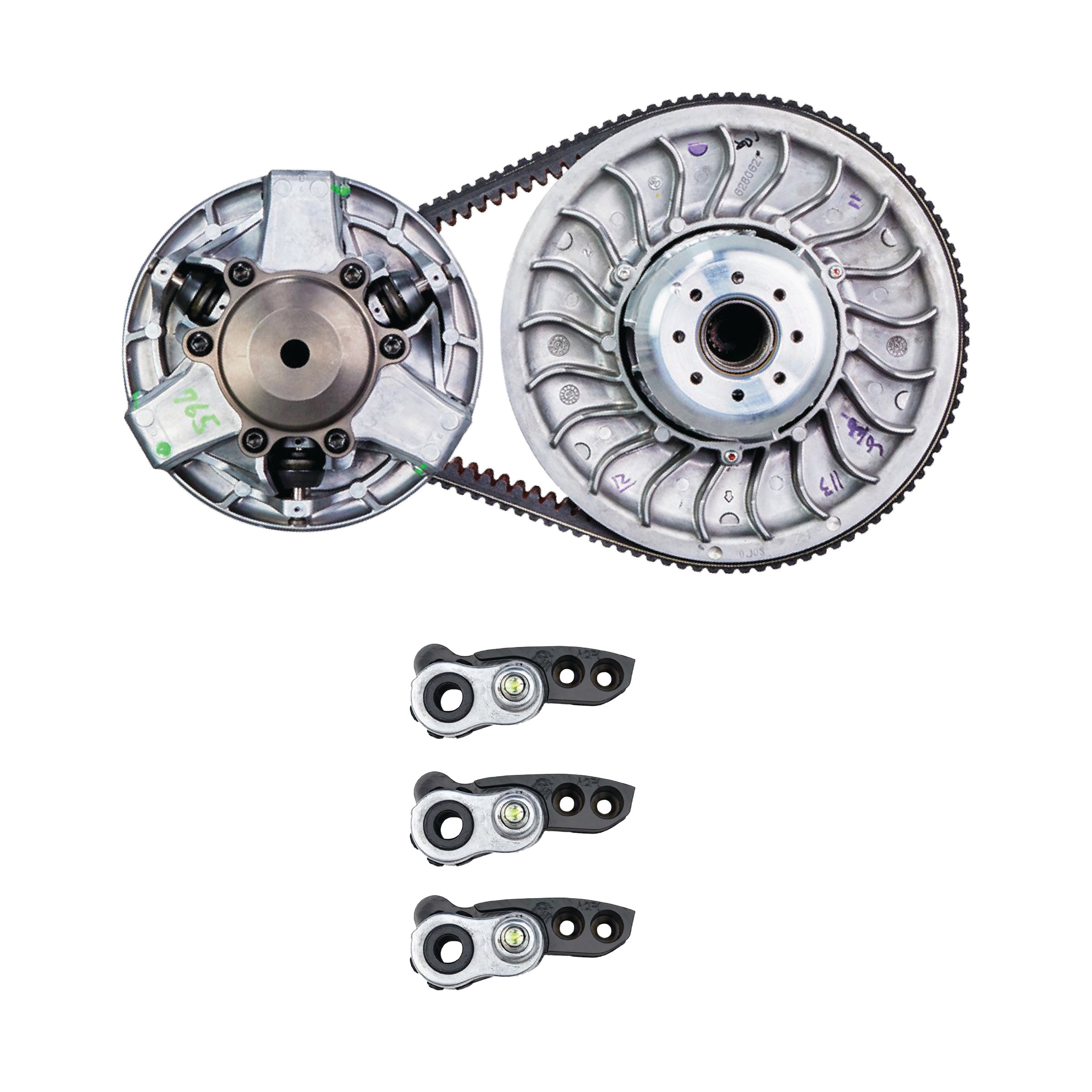

PD HD Cruiser Float
- Everything in PD HD Float
- AO-P1 Cruiser Clutch Kit – Designed for lower cruising RPMs, drivability, and efficiency on Defender HD11 with PDrive. Ideal for trail and utility riders.

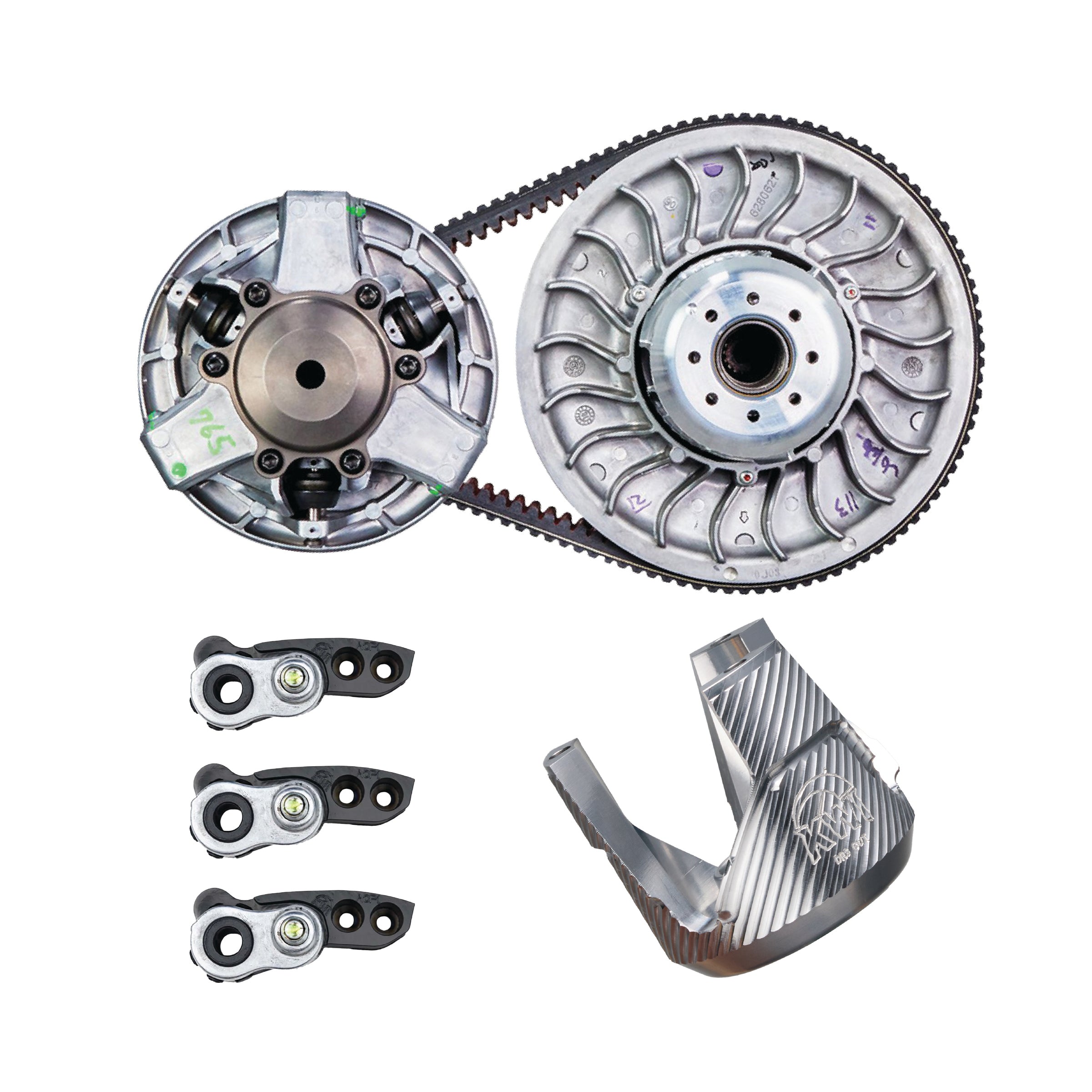

PD HD Cruiser Pro Float
- Everything in PD HD Cruiser Float
- Groovix Helix Upgrade – Adds our cooling-channel helix for enhanced belt control and better backshifting in work or high-load situations.
Roller Maintenance Notice
All PDrive Float packages now include BRP OEM primary rollers. These are known wear items and should be inspected after every ride. If you feel side-to-side play or see wear, replace immediately to avoid idle clutch drag and performance issues.
Compatible Machines
- 2025+ Can-Am Defender HD11 (PDrive equipped)
- Can-Am X3 135hp Base Model (Turbo R, 64")
Whether you're working hard or riding harder, the PD HD Float series fixes the core problems holding your clutch system back. Get smoother shifting, lower belt temps, and reliable performance—built KWI tough.
